REST API Tools

Registering a REST API tool

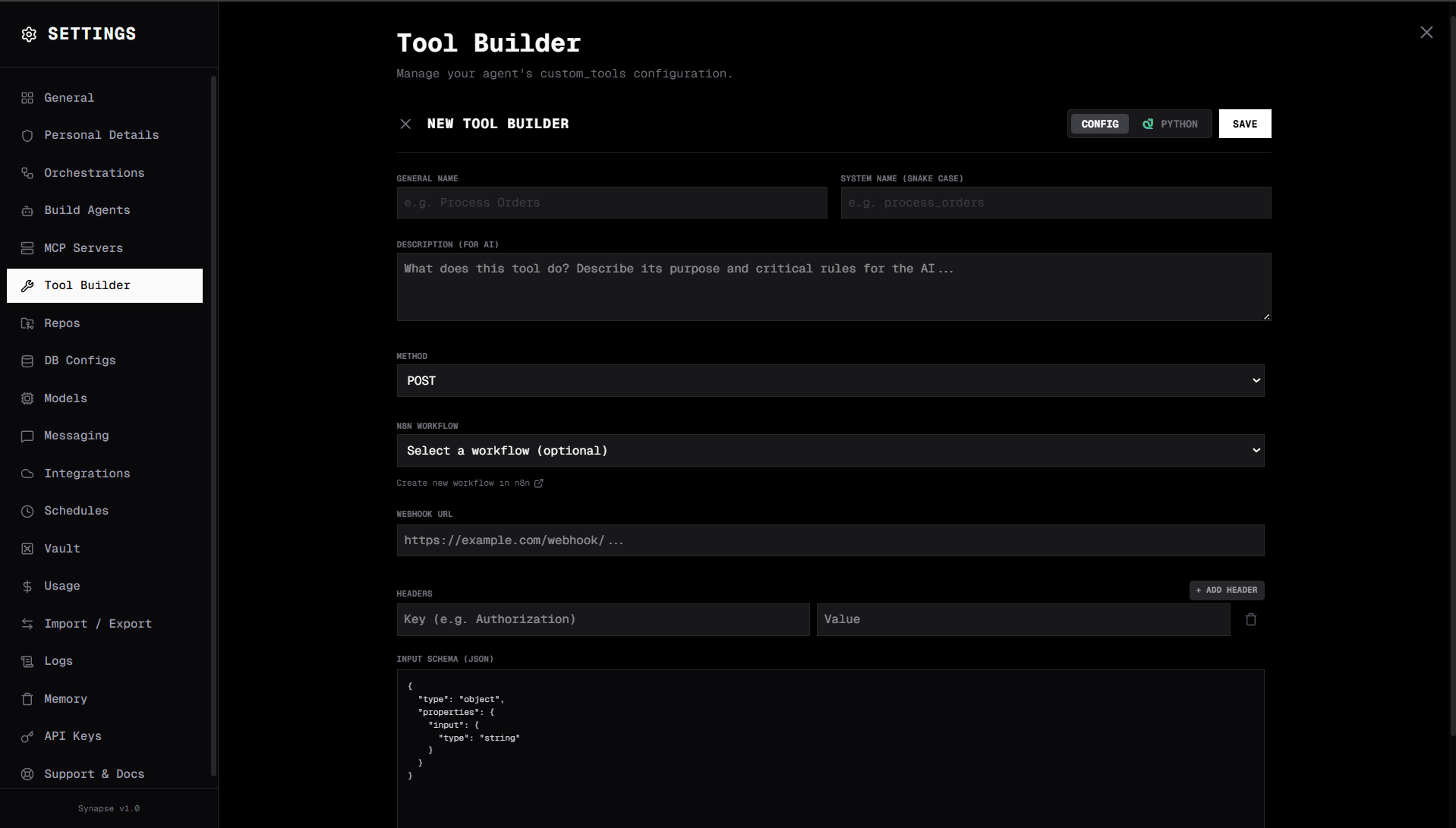

Open Apps › Tools, press New tool and choose HTTP request (Python code builds a Python tool). Self-hosted, New Tool opens the editor in its HTTP mode; the other mode, Python, builds a Python tool.

The screens, step by step: Tools, in the Guides.

Fields

Click Save when done (on Cloud, Create for a new tool). The name and URL are required.

Input schema

The input schema is a literal JSON Schema describing the tool's arguments; the agent reads it to construct valid calls. A new tool starts with a single string argument, input. For example:

{
  "type": "object",
  "properties": {
    "city": {
      "type": "string",
      "description": "City name to get weather for"
    },
    "units": {
      "type": "string",
      "description": "metric or imperial"
    }
  },
  "required": ["city"]
}

What the tool says it does

Three answers on the tool tell your tool policy what a call does, so a risky call can wait for a person before it runs:

• What it does: Reads only, Changes something or Deletes something.
• Safe to repeat: calling it twice changes nothing the first call didn't. If it isn't, a workflow won't send the call again after a timeout. A tool that only reads can always be asked again.
• Reaches outside this workspace: it talks to a system this workspace doesn't control.

An HTTP tool takes its method's answers until you say otherwise — the editor names where they came from, such as Set from GET api.example.com. Change them if that's wrong. — and Use the method's puts them back:

Every HTTP tool reaches outside until you untick it. For an address inside your network the editor says so: Untick "Reaches outside" if what it calls goes no further.

A tool made before these answers existed reads Not set until it is saved; saving gives it its method's answers.

URL and body templating

Reference the agent's arguments and your variables with double braces:

{{ … }} works in the URL, the request body and header values. The older single-brace {city} still works in the URL only — in a body or header it is sent literally.

A variable reference that can't be resolved is left as written, so a missing variable shows up in the request rather than silently disappearing. Arguments are stricter:

• A missing argument fails the call, and nothing is sent. The agent is told which: The call left out the argument city, which this tool's URL needs. Nothing was sent; call it again with it.
• An optional argument that is a query parameter's whole value — ?page={{ page }} — is left out of the URL when the agent does not send it, rather than sent empty.

Where the arguments go

• GET and DELETE — arguments the URL didn't use are sent as query parameters, after any query the URL already has. There is no body; a DELETE ignores the Request body field.
• POST and PUT, Request body empty — arguments the URL didn't use are sent as the JSON body.
• POST and PUT, Request body {{ body }} (one reference and nothing else) — that argument is the body.
• POST and PUT, anything else — a JSON template. Put a reference where a value goes: {"text": {{ message }}} or {"text": "{{ message }}"} both send the message as a JSON string, and an object stays an object. A reference inside a longer string, such as "Hello {{ name }}", makes the template invalid JSON, and the body is then sent as plain text.

URL:  https://api.example.com/users/{{ user_id }}/posts?page={{ page }}
Body: {"title": {{ title }}, "content": {{ content }}}

What happens on a call

• The request goes out with a 30-second timeout (SYNAPSE_HTTP_TOOL_TIMEOUT). Redirects are not followed.
• Addresses on your own network are refused: loopback (localhost, 127.0.0.1), private ranges (10.x, 192.168.x, …), link-local — including cloud metadata endpoints — and shared address space. The error names the host and says to add it to the EGRESS_ALLOW_HOSTS environment variable (comma-separated) and restart, which is how you call a service on your own network. See Environment Variables.
• The response is returned to the agent whatever its status code — a 404 or 500 body reaches the agent as the result, so describe error handling in the tool's description if it matters. In a Tool step, a 4xx or 5xx fails the call instead. A JSON response is returned as JSON; anything else as text.
• A response longer than the vault threshold is saved to the vault, and the agent receives a reference to the file.

Worked examples

Each example ends with the tool as SynapseOrch stores it — the editor fills this in as you complete the form.

Weather API

• General Name: Get Weather
• Name: get_weather
• Description: "Get current weather for a city"
• Method: GET
• URL: https://api.openweathermap.org/data/2.5/weather?appid={{ global.openweather_key }}
• Input schema: q (required string, the city), units (optional string)

Neither argument appears in the URL, so both are sent as query parameters under their own names — which is why the schema uses the API's parameter name q rather than city.

Advanced: stored tool JSON

{
  "name": "get_weather",
  "generalName": "Get Weather",
  "description": "Get current weather for a city",
  "tool_type": "http",
  "method": "GET",
  "url": "https://api.openweathermap.org/data/2.5/weather?appid={{ global.openweather_key }}",
  "headers": {},
  "inputSchema": {
    "type": "object",
    "properties": {
      "q": { "type": "string", "description": "City name" },
      "units": { "type": "string", "description": "metric or imperial" }
    },
    "required": ["q"]
  }
}

Internal API with auth header

• General Name: Get Customer
• Name: get_customer
• Method: GET
• URL: https://api.internal.company.com/customers/{{ customer_id }}
• Headers: Authorization: Bearer {{ global.crm_token }}, X-App-Version: 2.0
• Input schema: customer_id (required string)

api.internal.company.com must resolve to a public address, or be listed in EGRESS_ALLOW_HOSTS.

Advanced: stored tool JSON

{
  "name": "get_customer",
  "generalName": "Get Customer",
  "description": "Fetch customer record by ID from our CRM",
  "tool_type": "http",
  "method": "GET",
  "url": "https://api.internal.company.com/customers/{{ customer_id }}",
  "headers": {
    "Authorization": "Bearer {{ global.crm_token }}",
    "X-App-Version": "2.0"
  },
  "inputSchema": {
    "type": "object",
    "properties": {
      "customer_id": { "type": "string", "description": "Customer UUID" }
    },
    "required": ["customer_id"]
  }
}

Webhook trigger (Slack)

• General Name: Send Slack Alert
• Name: send_slack_alert
• Method: POST
• URL: {{ global.slack_alerts_webhook }}
• Request body: {"text": {{ message }}}
• Input schema: message (required string)

Advanced: stored tool JSON

{
  "name": "send_slack_alert",
  "generalName": "Send Slack Alert",
  "description": "Send an alert message to the #alerts Slack channel",
  "tool_type": "http",
  "method": "POST",
  "url": "{{ global.slack_alerts_webhook }}",
  "headers": {},
  "body": "{\"text\": {{ message }}}",
  "inputSchema": {
    "type": "object",
    "properties": {
      "message": { "type": "string", "description": "Alert message text" }
    },
    "required": ["message"]
  }
}

Authentication

Keep secrets in Variables and reference them, rather than pasting them into the tool:

Testing

REST API tools have no test button. To check templating and auth, give the tool to an agent and ask for a call in Chat — the Chat view shows the tool call and the response the agent received.
